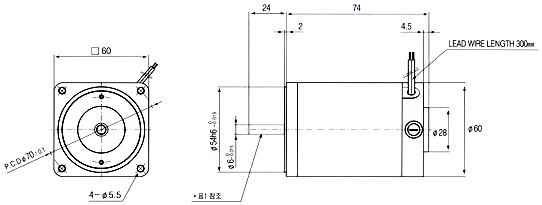

ㅁDIMENSIONS

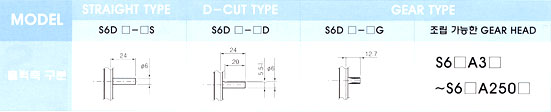

ㅁMOTOR 출력축 사양


ㅁPerformance Date

Model Output Voltage Rated Speed weight
Current Speed Torque
W V(DC) A rpm kg-cm N-m kg
S6D06-12□ 6 12 0.75 3000 0.2 0.02 conf. 0.58
S6D06-24□ 6 24 0.4 3000 0.2 0.02 conf. 0.58
S6D06-90□ 6 90 0.1 3000 0.2 0.02 conf. 0.58
S6D10-12□ 10 12 1.3 3000 0.35 0.035 conf. 0.58
S6D10-24□ 10 24 0.75 3000 0.35 0.035 conf. 0.58
S6D10-90□ 10 90 0.75 3000 0.35 0.035 conf. 0.58
