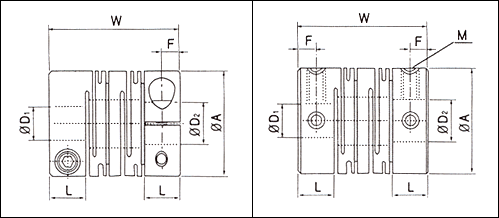

| SRB*-**C
CLAMP TYPE |
SRB-** SET SCREW TYPE |
 |
|
| |
제품
번호product
Number |
DIMENSION(mm) |
중량
weight
(g) |
관성
모멘트
Moment of
intertia
(kg.m2) |
최초
회전수
Max RPM
(min-1) |
| A |
L |
W |
F |
M |
| SRB-16C |
16 |
6.1 |
21.5 |
3.05 |
2.6 |
8.5 |
3.1×10-7 |
12,000 |
| SRB-19C |
19.1 |
6.1 |
23 |
3.05 |
2.6 |
12 |
6.5×10-7 |
9,500 |
| SRB-22C |
22.2 |
7.2 |
26.5 |
3.6 |
3 |
19 |
1.4×10-6 |
8,500 |
| SRB-26C |
26.2 |
7.4 |
31.4 |
3.7 |
3 |
33 |
3.2×10-6 |
7,500 |
| SRBA-32C |
32 |
9.4 |
39 |
4.7 |
4 |
60 |
9.1×10-6 |
6,500 |
| SRBB-32C |
32 |
9.4 |
44 |
4.7 |
4 |
68 |
1.1×10-5 |
6,000 |
| SRBA-39C |
39 |
10.5 |
43 |
5.35 |
5 |
95 |
2.2×10-5 |
5,000 |
| SRBB-39C |
39 |
16 |
56 |
5.35 |
5 |
135 |
3.1×10-5 |
4,100 |
| |
| SRB-16 |
16 |
4.6 |
18.5 |
2.3 |
3 |
7.8 |
2.8×10-7 |
30,000 |
| SRB-19 |
19.1 |
5.7 |
22 |
2.8 |
3 |
12 |
6.5×10-7 |
25,000 |
| SRB-22 |
22.2 |
6.5 |
25 |
2.25 |
4 |
19 |
1.4×10-6 |
20,000 |
| SRB-26 |
26.2 |
6.8 |
30 |
3.4 |
4 |
33 |
3.2×10-6 |
17,000 |
| SRB-32 |
32 |
9.4 |
39 |
4.7 |
5 |
62 |
9.4×10-6 |
15,000 |
| SRB-39 |
39 |
16 |
56 |
6 |
5 |
124 |
3×10-5 |
9,600 |
제품
번호product
Number |
상용
토오크
Rated
Torque
(kgf.cm) |
최대
토오크
Max
Torque
(kgf.cm) |
비틀림
강성
Torsional
stiffness
N.m/rad |
Errors of Misallgnment |
편각
Angle
(°) |
편심
Paralle
(㎜) |
End-play
(㎜) |
| SRB-16C |
4 |
8 |
65 |
2 |
0.15 |
±0.3 |
| SRB-19C |
6 |
12 |
140 |
2 |
0.15 |
±0.4 |
| SRB-22C |
10 |
20 |
170 |
2 |
0.15 |
±0.4 |
| SRB-26C |
15 |
30 |
240 |
2 |
0.2 |
±0.5 |
| SRBA-32C |
26 |
52 |
400 |
2 |
0.23 |
±0.5 |
| SRBB-32C |
26 |
52 |
380 |
2 |
0.25 |
±0.5 |
| SRBA-39C |
65 |
130 |
520 |
2 |
0.2 |
±0.5 |
| SRBB-39C |
65 |
130 |
460 |
2 |
0.2 |
±0.5 |
| |
| SRB-16 |
4 |
8 |
65 |
2 |
0.15 |
±0.3 |
| SRB-19 |
6 |
12 |
140 |
2 |
0.15 |
±0.4 |
| SRB-22 |
10 |
20 |
170 |
2 |
0.2 |
±0.5 |
| SRB-26 |
15 |
30 |
240 |
2 |
0.2 |
±0.5 |
| SRB-32 |
26 |
52 |
400 |
2 |
0.23 |
±0.5 |
| SRB-39 |
65 |
130 |
460 |
2 |
0.2 |
±0.5 |
|
| |
 |
| |
 |
|
|
|
| |
|
|
