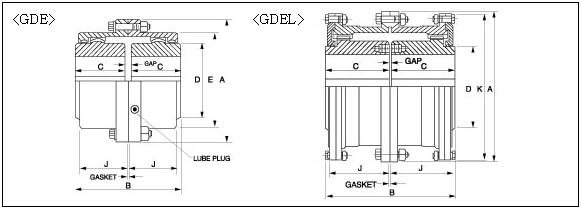

- Type GDE(Double Engagement Coupling) GDEL(Double Engagement Large Coupling)

Size	HP Per 100 rpm	Max. Speed (rmp)	Baxic Torque (kg.cm)	Bore Dia (mm)		Dimensions(mm)						Gap	Cplg Wt(kg)	Lube Wt(kg)
Size	HP Per 100 rpm	Max. Speed (rmp)	Baxic Torque (kg.cm)	Max.	Min.	A	B	C	D	E	J	Gap	Cplg Wt(kg)	Lube Wt(kg)
10GDE	12	8000	8594	48	13	116	89	43	69	84	39	3	4.5	0.04
15GDE	27	6500	19337	60	19	152	101	49	86	105	48	3	9.1	0.07
20GDE	50	5600	35810	73	25	178	127	62	105	126	59	3	15.9	0.11
25GDE	90	5000	64458	92	32	213	159	77	131	155	72	5	25.9	0.23
30GDE	150	4400	107430	105	38	240	187	91	152	180	84	5	43.1	0.36
35GDE	23	3900	164726	124	51	279	218	106	178	211	98	6	68.0	0.54
40GDE	350	3600	250670	146	64	318	248	121	210	245	111	6	97.5	0.91
45GDE	480	3200	343776	165	76	346	278	135	235	274	123	8	136.1	1.04
50GDE	650	2900	465530	178	89	389	314	153	254	306	141	8	190.5	0.77
55GDE	850	2650	608770	197	102	425	344	168	279	334	158	8	249.5	2.22
60GDE	1100	2450	787820	222	114	457	384	188	305	366	169	8	306.2	3.18

Size	HP Per 100 rpm	Max. Speed (rmp)	Baxic Torque (kg.cm)	Bore Dia (mm)		Dimensions(mm)								Cplg Wt(kg)	Lube Wt(kg)
Size	HP Per 100 rpm	Max. Speed (rmp)	Baxic Torque (kg.cm)	Max.	Min.	A	B	C	D	DG	J	K	Gap	Cplg Wt(kg)	Lube Wt(kg)
70GDEL	1600	2150	1145920	254	89	527	451.5	221	343	356	196	517	9.5	485.4	4.35
80GDEL	2100	1750	1504020	279	102	591	507.5	249	356	368	243	572	9.5	703.1	953
90GDEL	2850	1550	2041170	305	114	660	565	276	394	419	265	641	13	984.3	1225
100GDEL	4000	1450	2864800	343	127	711	623	305	445	470	294	699	13	1302	1497
110GDEL	5500	1330	3939100	387	140	775	679	333	495	521	322	749	13	1678.3	1769
120GDEL	7000	1200	5013400	425	152	838	719	353	546	572	341	826	13	2113.8	2087

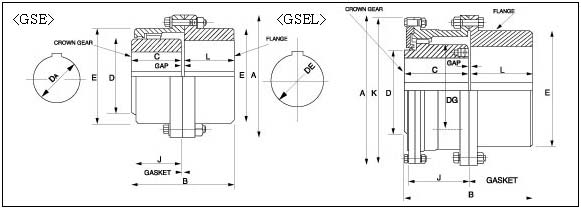

- Type GSE(Single Engagement Coupling) GSEL(Single Engagement Large Coupling)

Size	HP Per 100 rpm	Max. Speed (rmp)	Baxic Torque (kg.cm)	Bore Dia (mm)			Dimensions(mm)								Cplg Wt(kg)	Lube Wt(kg)
				Max.		Min.	A	B	C	D	E	J	L	Gap
				DE	DA	Min.	A	B	C	D	E	J	L	Gap
10GSE	12	8000	8594	60	48	13	116	89	43	69	84	39	40	4	4.5	0.02
15GSE	27	6500	19337	75	60	19	152	101	49	86	105	48	46	4	9.1	0.04
20GSE	50	5600	35810	92	73	25	178	127	62	105	126	59	58	4	15.9	0.07
25GSE	90	5000	64458	111	92	32	213	159	77	131	155	72	74	5	27.2	0.12
30GSE	150	4400	107430	130	105	38	240	187	91	152	180	84	88	5	43.1	0.18
35GSE	23	3900	164726	149	124	51	279	218	106	178	211	98	102	5.5	61.2	0.27
40GSE	350	3600	250670	171	146	64	318	248	121	210	245	111	115	7	99.8	0.47
45GSE	480	3200	343776	194	165	76	346	278	135	235	274	123	131	8	136.1	0.57
50GSE	650	2900	465530	222	178	89	389	314	153	254	306	141	147	9	190.5	0.91
55GSE	850	2650	608770	248	197	102	425	344	168	279	334	158	173	9	263.1	1.13
60GSE	1100	2450	787820	267	222	114	457	384	188	305	366	169	186	10	324.3	1.70

Size	HP Per 100 rpm	Max. Speed (rmp)	Baxic Torque (kg.cm)	Bore Dia (mm)			Dimensions(mm)										Cplg Wt(kg)	Lube Wt(kg)
				Max.		Min.	A	B	C	D	DG	E	J	L	K	Gap
				DE	DA	Min.	A	B	C	D	DG	E	J	L	K	Gap
70GSEL	1600	2150	1145920	305	254	89	527	454	221	343	356	425	196	220	517	13	508.0	2.27
80GSEL	2100	1750	1504020	343	279	102	591	511	249	356	368	451	243	249	572	13	698.5	4.99
90GSEL	2850	1550	2041170	381	305	114	660	566	276	394	419	508	265	276	641	14	984.5	6.35
100GSEL	4000	1450	2864800	406	343	127	711	626	305	445	470	530	294	305	699	16	1251.9	7.71
110GSEL	5500	1330	3939100	445	387	140	775	682	333	495	521	584	322	333	749	16	1637.5	9.07
120GSEL	7000	1200	5013400	495	425	152	838	722	353	546	572	648	341	353	826	16	2077.5	10.89

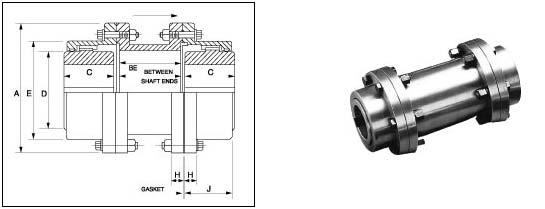

- Type GSCD ( Spacer Coupling Double Engagement)

Size	HP Per 100 rpm	Max. Speed (rpm)	Baxic Torque (kg.cm)	Bore Dia (mm)		Dimensions(mm)								Cplg Wt(kg)	Lube wt(kg)
				Max.	Min.	A	BE		C	D	E	H	J
				Max.	Min.	A	Min.	Max.	C	D	E	H	J
10GSCD	12	7000	8594	48	13	116	83	311	43	69	84	14	39	6.8	0.04
15GSCD	27	5500	19337	60	19	152	83	311	49	86	105	19	48	13.6	0.07
20GSCD	50	4600	35810	73	25	178	83	311	62	105	126	19	59	20.4	0.11
25GSCD	90	4000	64458	92	32	213	95	311	77	131	155	22	72	38.6	0.23
30GSCD	150	3600	107430	105	38	240	95	311	91	152	180	22	84	54.4	0.36
35GSCD	230	3100	164726	124	51	279	120	311	106	178	211	28	98	88.5	0.54
40GSCD	350	2800	250670	146	64	318	120	311	121	210	245	28	111	122.5	0.91
45GSCD	480	2600	343776	165	76	346	120	311	135	235	274	28	123	165.6	1.04
50GSCD	650	2400	465530	178	89	389	146	311	153	254	306	38	141	238.1	1.77
55GSCD	850	2200	608770	197	102	425	146	311	168	279	334	38	158	306.2	2.22
60GSCD	1100	2100	787820	222	114	457	146	311	188	305	366	25	169	358.3	3.18
70GSCD	1600	1800	1145920	254	127	527	146	311	221	356	425	28	196	562.5	4.35

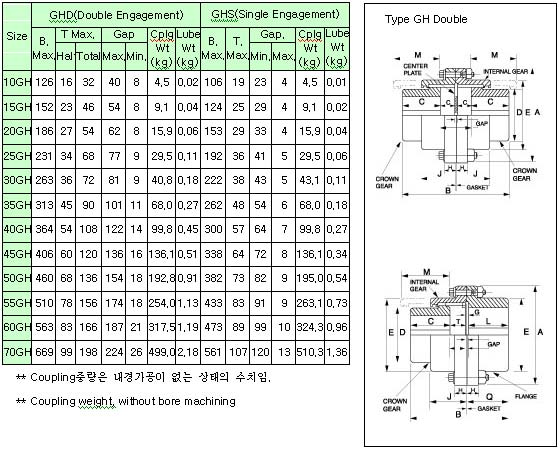

- Type GH(Gear Horisontal Sliding)

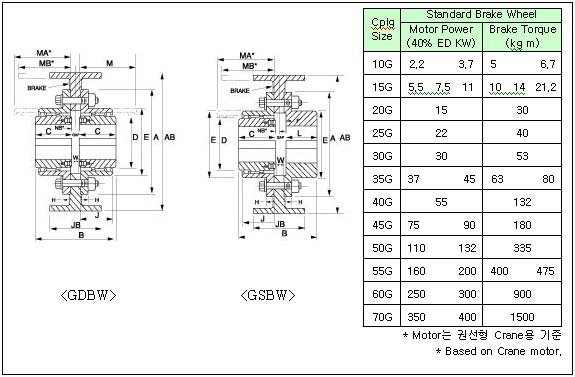

- Type GDBW/GSBW (Brake Wheel Double/Single Engagement)

Brake wheel Size(mm)		Size	Max. Brake Rating of Cplg	Bore Dia(mm)			Dimensions(mm)														Lube Wt(kg)
Brake wheel Size(mm)				Max.		Min.	A	Max.		C	D	E	F	H	J	L	M	W	GAP		Lube Wt(kg)
AB	JB			Gear	Flange	Min.	A	GD	GS	C	D	E	F	H	J	L	M	W	GD	GS	GD	GS
160	80	10G	2558	48	60	13	116	99	97	43	69	2.5	84	14	39	40	51	10	13	14	0.04	0.03
200	100	15G	5807	60	75	19	152	114	112	49	86	2.5	105	19	48	46	61	13	16	17	0.09	0.05
250	125	20G	10715	73	92	25	178	140	137	62	105	2.5	126	19	59	58	76	13	16	17	0.14	0.09
250	125	25G	19356	92	111	32	213	173	170	77	131	2.5	155	22	72	74	91	14	19	19	0.27	0.16
315	160	30G	31799	105	130	38	240	201	198	91	152	2.5	180	22	84	88	107	14	19	19	0.41	0.23
355	180	35G	49081	124	149	51	279	237	233	106	178	2.5	211	28	98	102	130	19	25	25	0.57	0.34
400	200	40G	74659	146	171	64	318	267	262	121	210	4	245	28	111	115	145	19	25	26	0.91	0.54
450	224	45G	102310	165	194	76	346	297	293	135	235	4	274	28	123	131	165	19	27	27	1.13	0.64
500	250	50G	138257	178	222	89	389	339	334	153	254	5	306	38	141	147	183	25	33	34	1.87	1.13
560	280	55G	181463	197	248	102	425	369	375	168	279	5	334	38	158	173	203	25	33	34	2.32	1.36
762	362	60G	235037	222	267	114	457	409	410	188	305	6.6	366	25	169	176	229	25	33	36	3.40	1.93
762	362	70G	341495	254	305	127	527	477	479	221	356	8	425	28	196	220	267	25	33	38	4.45	2.61

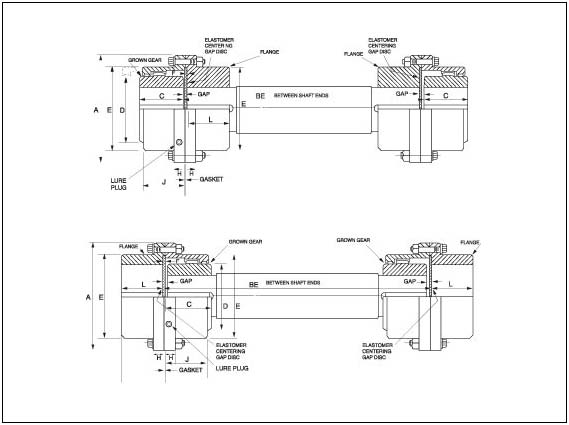

- Type GFS (Single Engagement Coupling with Floating Shafts)

Size	HP Per 100 rpm	Max. Speed (rpm)	Baxic Torque (kg.cm)	Bore Dia (mm)		Dimensions(mm)												Cplg Wt (kg)	Lube wt (kg)
				Gear	Flang-e	A	BE Min.		C	D	F	E	H	J	L	Q	Gap
				Gear	Flang-e	A	GFS-R.	GFS-O.	C	D	F	E	H	J	L	Q	Gap
10GFS	12	7000	8594	48	13	116	83	311	43	69	2.5	84	14	39	40	42	4.0	6.8	0.04
15GFS	27	5500	19337	60	19	152	83	311	49	86	2.5	105	19	48	46	49	4.0	13.6	0.07
20GFS	50	4600	35810	73	25	178	83	311	62	105	2.5	126	19	59	58	61	4.0	20.4	0.11
25GFS	90	4000	64458	92	32	213	95	311	77	131	2.5	155	22	72	74	76	5	38.6	0.23
30GFS	150	3600	107430	105	38	240	95	311	91	152	2.5	180	22	84	88	90	5	54.4	0.36
35GFS	230	3100	164726	124	51	279	120	311	106	178	2.5	211	28	98	102	105	5.5	88.5	0.54
40GFS	350	2800	250670	146	64	318	120	311	121	210	4.1	245	28	111	115	119	7	122.5	0.91
45GFS	480	2600	343776	165	76	346	120	311	135	235	4.1	274	28	123	131	135	8	165.6	1.04
50GFS	650	2400	465530	178	89	389	146	311	153	254	5.1	306	38	141	147	152	9	238.1	1.77
55GFS	850	2200	608770	197	102	425	146	311	168	279	5.1	334	38	158	173	178	9	306.2	2.22
60GFS	1100	2100	787820	222	114	457	146	311	188	305	6.6	366	25	169	186	193	10	358.3	3.18
70GFS	1600	1800	1145920	254	127	527	146	311	221	356	8.4	425	28	196	220	229	13	562.5	4.35

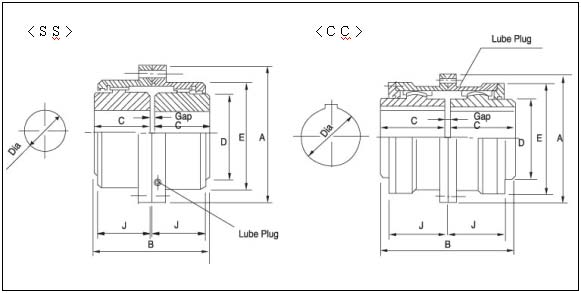

- Type SS/CC(Gear Double / Large)

Size	HP Per 100 rpm	Max. Speed (rmp)	Baxic Torque (kg.cm)	Bore Dia (mm)				Dimensions(mm)							Cplg Wt(kg)	Lube Wt(kg)
				Max.		Min.	A		B	C	D	E	J	Gap
				DE	DA	Min.	A		B	C	D	E	J	Gap
SS112	8	3600	5730	40	50	16	112		108	50	58	79	39	8	4.6	0.04
SS125	14	3600	10160	50	56	31	125		134	63	70	92	44	8	6.7	0.05
SS140	20	3600	14630	56	63	31	140		150	71	80	107	47	8	9.3	0.07
SS160	31	3600	22390	63	71	31	160		170	80	95	120	52	10	14	0.09
SS180	48	3600	34380	71	80	45	180		190	90	105	134	56	10	19	0.12
SS200	69	3600	49100	80	90	45	200		210	100	120	149	61	10	26	0.15
SS224	100	3080	71330	90	100	51	224		236	112	145	174	65	12	38	0.25
SS250	134	2650	96190	100	125	51	250		262	125	165	200	74	12	56	0.35
SS280	233	2340	166600	125	140	51	280		294	140	190	224	82	14	83	0.48
SS315	367	1980	262600	160	180	112	315		356	170	225	260	98	16	135	0.77
SS355	552	1800	395400	180	200	125	355		396	190	250	288	108	16	184	0.94
SS400	776	1570	555500	200	236	140	400		418	200	285	329	114	18	261	1.36
CC450	1050	1570	752000	200	224	140	450		418	200	290	372	151	18	304	1.79
CC500	1652	1320	1183000	236	265	170	500		494	236	335	425	168	22	453	2.64
CC560	2369	1170	1697000	265	300	190	560		552	265	385	475	187	22	664	3.23
CC630	3700	990	2650000	315	355	224	630		658	315	455	548	213	28	1020	4.93
CC710	5306	870	3800000	355	400	250	710		738	355	510	622	242	28	1460	6.63
CC800	7600	780	5443000	400	450	280	800		832	400	570	690	267	32	2090	9.35

- Type SE/CE(Gear Single /Large)

Size	HP Per 100 rpm	Max. Speed (rmp)	Baxic Torque (kg.cm)	Bore Dia (mm)			Dimensions(mm)								Cplg Wt(kg)	Lube Wt(kg)
				Max.		Min.	A	B	C	D	E	G	J	Gap
				DE	DA	Min.	A	B	C	D	E	G	J	Gap
SE112	8	3600	5730	40	50	16	112	108	50	58	79	54	39	8	4.6	0.04
SE125	14	3600	10160	50	56	31	125	134	63	70	92	67	44	8	6.7	0.05
SE140	20	3600	14630	56	63	31	140	150	71	80	107	75	47	8	9.3	0.07
SE160	31	3600	22390	63	71	31	160	170	80	95	120	85	52	10	14	0.09
SE180	48	3600	34380	71	80	45	180	190	90	105	134	95	56	10	19	0.12
SE200	69	3600	49100	80	90	45	200	210	100	120	149	105	61	10	26	0.15
SE224	100	3080	71330	90	100	51	224	236	112	145	174	118	65	12	38	0.25
SE250	134	2650	96190	100	125	51	250	262	125	165	200	131	74	12	56	0.35
SE280	233	2340	166600	125	140	51	280	294	140	190	224	147	82	14	83	0.48
SE315	367	1980	262600	160	180	112	315	356	170	225	260	178	98	16	135	0.77
SE355	552	1800	395400	180	200	125	355	396	190	250	288	198	108	16	184	0.94
SE400	776	1570	555500	200	236	140	400	418	200	285	329	209	114	18	261	1.36
CE450	1050	1570	752000	200	224	140	450	418	200	290	372	209	151	18	304	1.79
CE500	1652	1320	1183000	236	265	170	500	494	236	335	425	247	168	22	453	2.64
CE560	2369	1170	1697000	265	300	190	560	552	265	385	475	276	187	22	664	3.23
CE630	3700	990	2650000	315	355	224	630	658	315	455	548	329	213	28	1020	4.93
CE710	5306	870	3800000	355	400	250	710	738	355	510	622	369	242	28	1460	6.63
CE800	7600	780	5443000	400	450	280	800	832	400	570	690	416	267	32	2090	9.35
